I-ONIX U82S (discontinued)

8x2 USB 2.0 Desktop Recording Studio

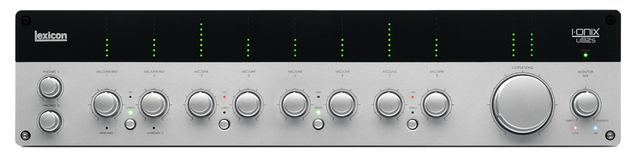

I-ONIX U82S
Larger Images

Computer System Recommendations

Windows

  • Microsoft Windows® 7, Vista 32 and XP SP2
  • 1.8 GHz CPU or faster
  • 1 GB RAM
  • Display resolution 1024x768 pixels
  • DVD-ROM drive
  • USB 2.0
  • Internet access required for software license activation

Macintosh

  • Mac® OS X 10.4.9 or higher
  • Intel® Multicore system (Required)
  • 1 GB RAM
  • Display resolution 1024x768 pixels
  • DVD-ROM drive
  • USB 2.0
  • Internet access required for software license activation

Software Compatibility

Windows XP 32-bit checkmark
Windows Vista 32-bit checkmark
Windows Vista 64-bit checkmark
Windows 7 32-bit checkmark
Windows 7 64-bit checkmark
Mac OS X 10.4.x checkmark
Mac OS X 10.5.x checkmark
Mac OS X 10.6.x checkmark

green checkmark =  Product has been tested and validated to work with this software.
checkmark =  Product has been tested and validated to work, but some customer issues have been reported.
red dash =  Not currently supported

Details

<h3>Technical Specifications</h3>
Combi-Jack Analog Inputs    8
Simult. Recording Sources    10
Microphone Preamps    8
Hi-Z Instrument Inputs    2
S/PDIF    Yes
MIDI    Yes
Headphone Connections    2
1/4" TRS Balanced Analog Outputs    2
Microphone Inputs    Female XLR Pin 2 Hot
Input Impedance    3k &Omega; balanced
Phantom Power    +48 Volts
Maximum gain    +55 dB
E.I.N. (at max gain)    -127 dB @ 55dB gain typical (150O source) -130 dB @ 55dB gain typical A-weighted (150O source)
Maximum Input Level    +8 dBu
Frequency Response    +/-1.5 dB, 20Hz - 20kHz
THD+N    <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, -6 dBu
Line In puts    1/4” TRS balanced or unbalanced
Input Impedance    20k &Omega; balanced, 13k &Omega; unbalanced
Maximum Input Level:    +18 dBu
Frequency Response:    +/-1.5 dB, 20Hz - 20kHz
THD+N:    <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, +18 dBu
Instrument Input    1/4" TS unbalanced
Input Impedance:    1M &Omega;
Maximum Input Level    +10 dBu
Frequency Response    +/-2.5 dB, 20Hz - 20kHz
THD+N:    <0.08%, 1kHz, +4 dBu
Line Outputs    1/4” TRS balanced or unbalanced
Level    +18 dBu maximum
Impedance    32 &Omega; Balanced, 16 &Omega; Unbalanced
Headphone Output:    1/4” stereo jack 250mW per channel at 50O
MIDI Interface:    5 pin DIN connectors for MIDI in and MIDI out
Sample Rate:    44.1, 48, 88.2, or 96 kHz (determined by computer application)
Dynamic Range:    A/D (24 Bit) 108 dB typical, A-weighted, 20Hz - 20kHz
Dynamic Range    D/A (24 Bit) 110 dB typical, A-weighted, 20Hz - 20kHz
Dynamic Range    A/D/A (24 Bit) 106 dB typical, A-weighted, 20Hz - 20kHz
Power Requirements    Power adaptors available for 100 – 240 VAC, 50/60 Hz, 15 Watts
Lexicon engineers are constantly working to improve the quality of our products. Specifications are therefore subject to change without notice
