PCM96 Surround (digital)

Parallel Stereo and Surround Reverb/Effects Processor w/ Digital I/O

Larger Images

Building on the success of the PCM96, the new PCM96 Surround offers more presets, more configuration options, and more inputs and outputs. The PCM96 Surround gives you industry standard reverbs and effects, with tremendous flexibility.

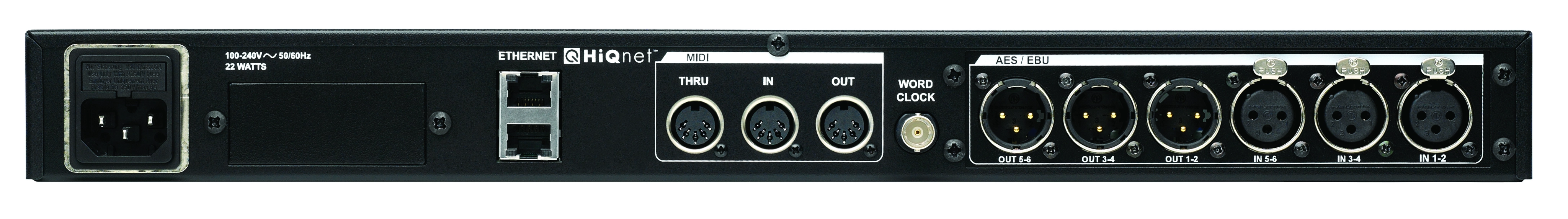

The PCM96 Surround is availble with either 6 XLR Stereo AES inputs and outputs, or 2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O. Both versions also feature MIDI, and Wordclock.

Details

  • 6 XLR Stereo AES inputs and outputs
  • New Parallel Stereo and Sorround configurations
  • 50 legendary Lexicon reverbs, delays, and modulation effects
  • Lexicon's new Surround Room algorithm, used to generate a vast array of room-related effects for music and post
  • New Pitch algorithms
  • Over 2200 factory presets, including recognizable classics from Lexicon's immense library of sounds
  • 32-bit floating point processing
  • Sample rates up to 96kHz
  • External BNC Wordclock
  • MIDI in, out and thru
  • 768 user presets
  • Compact Flash for additional storage

More Details

Stereo And Surround Reverbs & Effects
  • Room
  • Hall
  • Chamber
  • Random Delay
  • Classic (Random Hall)
  • Plate
  • Dual Delay
  • Ambience
  • Resonant Chords
  • Chorus/Flange
  • Concert Hall
  • Signal Generator
  • Pitch
Mono Reverbs & Effects
  • Chamber
  • Hall
  • Plate
  • Room
  • Chorus/Flange
  • Dual Delay
  • Random Delay
  • Random Hall
  • Resonant Chords
  • Signal Generator
  • Pitch

Documentation

Downloads

  Version Language Size Uploaded
PCM96 Surround (digital) Safety & Compliance Document-English   en  327 KB Apr 24, 2018
PCM96 Surround (digital) Cut Sheet-English   en  5.06 KB Jan 29, 2013
PCM96 Surround (digital) Owner's Manual-English   en  1.91 MB Feb 04, 2016
PCM96 Surround (digital) Owner's Manual-French   fr  5.12 KB Jan 29, 2013
PCM96 Surround (digital) Owner's Manual-Spanish   es  5.15 KB Jan 29, 2013
PCM96 Surround (digital) Preset List-English   en  5.19 KB Jan 29, 2013
Software
PCM Control and Plugin 3.5.3.6    225 MB Aug 22, 2016
HiQnet System Architect 3.4    Mar 11, 2019
