QLI-32

32 Channel QuantumLogic™ Immersion Processor

Larger Images

Provide an immersive sound experience within budget and gain a competitive edge with Lexicon's QLI-32. Intelligent and flexible, this cinema processor is fully compatible with existing cinema processors and designed to deliver up to 32 channels of surround sound. For an immersive and life-like sound experience, the QLI-32 is the smart solution for any cinema.

Questions? Contact us at harmanprocinema@harman.com



Features

  • Compatible with existing systems
  • Flexible location for height channels
  • GPI control
  • 8 channel Analog input (25-Pin Connector)
  • 8 channel AES input (RJ-45 Connector)
  • BLU link input/output (2 RJ-45 Connectors)
  • Ethernet control
  • Create an immersive audio environment from stereo, 5.1 and 7.1 inputs
  • Output up to 32 discrete channels of audio over BLU link
  • 1/3 octave graphic EQ for each output channel
  • Parametric EQ on low frequency extension
  • Web–based interface
  • Covered by 3-year warranty

Downloads

  Version Language Size Uploaded
Data Sheet     1.82 MB May 29, 2015
Front Panel     168 KB May 20, 2015

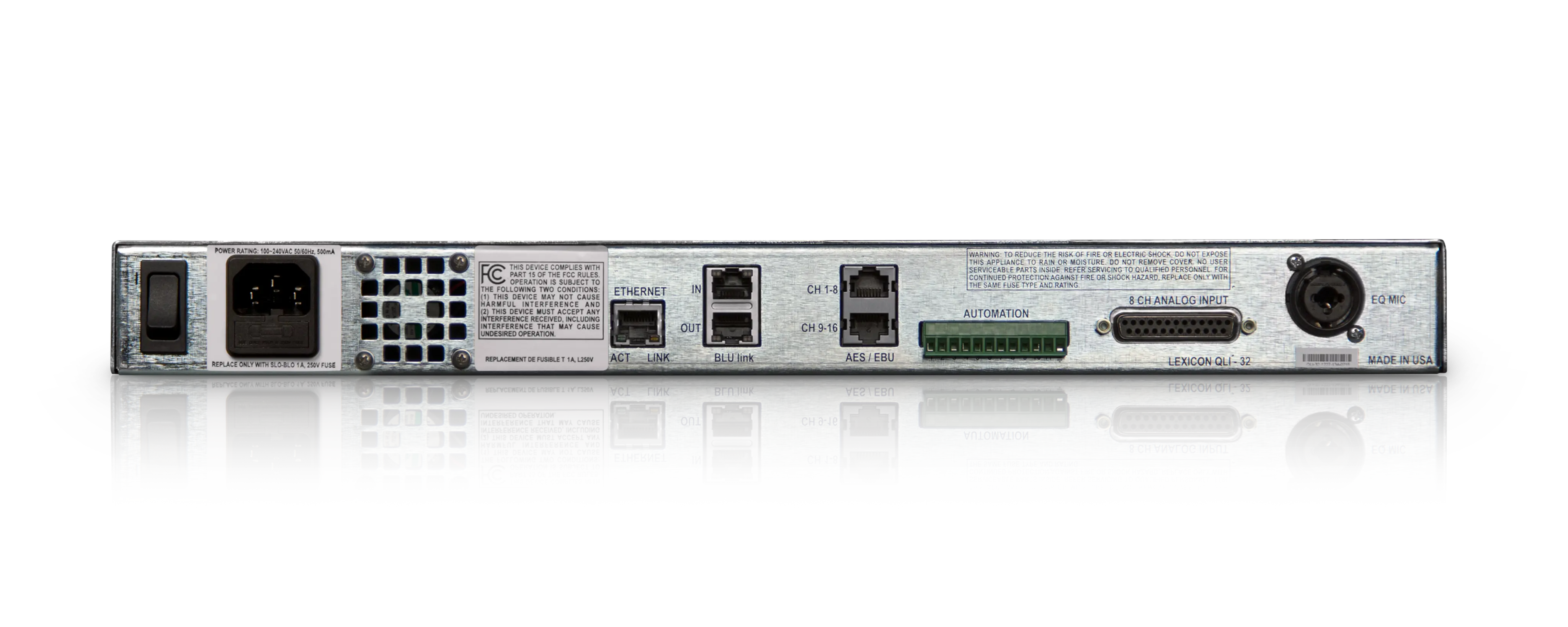

Back Panel     364 KB May 29, 2015
QLI-32 Owner's Manual     1.44 MB Sep 10, 2015
QLI-32 Quick Reference Guide-English   en  1.53 MB Apr 22, 2015
Software
QLI-32 Firmware 1.0.26    19.1 MB Sep 02, 2016

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Signal to Noise 110dB (20Hz - 20kHz)
Power Supply 100VAC - 240VAC, 50/60Hz
Network Connector BLU link - 2 stacked RJ-45 connectors
Dimensions 1.67" (4.24 cm) x 19" (48.26 cm) x 10.5" (26.67 cm)
