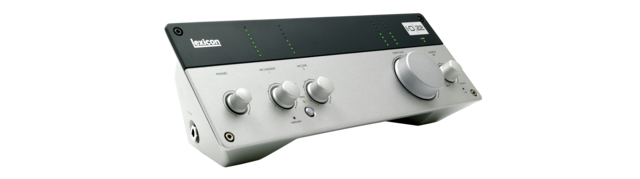

I-O | 22 (discontinued)

2x2 USB 2.0 Desktop Recording Studio

I-O | 22
Larger Images

DAW Inspired.

Lexicon I-O Pro Tools 12 Compatible

No artist likes to be told what to do - what tools to use and what tools you can’t use. Lexicon understands your passion and it inspires us to innovate. Brilliantly designed, the I·O Desktop Recording Series is compatible with any DAW, including Pro Tools 10 through 12. Now this innovative hardware design meets the software capability of any creative passion.

Featuring newly designed dbx® 60V high-voltage, ultra-low noise mic preamps on both channels, the I-O|22 is more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D – D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

The I-O|22 can record two tracks at once and includes 2 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, a hi-Z instrument input, a 1/4" high power headphone output, and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.



  • USB 2.0 Desktop Recording Studio
  • 44.1kHz to 96kHz sample rates, 24-bit resolution
  • Pantheon II VST/AU reverb plug-in with 6 legendary Lexicon reverbs
  • dbx® 60V high-voltage, ultra-low noise microphone preamps
  • Superior sonic performance
  • 2 analog combi-jacks for mic/line inputs
  • 2 analog 1/4" TRS balanced outputs
  • Zero latency monitoring
  • Low latency ASIO drivers
  • Streamlined monitor form factor puts all recording controls at your fingertips
  • Separate level meters and gain control per channel
  • 1 side panel 1/4" instrument input
  • 1 side panel headphone output with dedicated volume adjustment
  • MIDI in and out

Power Requirements:

*IMPORTANT NOTE: There are two different models of the IO 22. Ensure that you properly match the power requirements screening on the back panel of the IO 22 with the corresponding adapter model listed below.

9 VAC 2.1 A 18W
Power adapters available for:

Japan: 100 VAC, 50/60 Hz Adapter: PSS3-JA
US and Canada: 120 VAC, 60 Hz Adapter: PSS3-120
Europe: 230 VAC, 50 Hz Adapter: PSS3-EU
UK: 240 VAC, 50 Hz Adapter: PSS3-UK
Australia: 240 VAC, 50 Hz Adapter: PSS3-AU

9 VDC 2.0 A 18W
Power adapters available for:

US, Canada, Europe, Japan: 100-240 VAC, 50/60 Hz Adapter: PS0920DC-01
Australia & UK: 100-240 VAC, 50/60 Hz Adapter: PS0920DC-02

Included Software

FW810s-SteinbergCubase PantheonII FW810s-EzDrummer FW810s-XLIS3

The I-O|22 contains all the necessary tools to transform your computer into a professional 24-bit/96kHz digital recording studio.


  Version Language Size Uploaded
platform icon Lexicon I-O Driver
version 3.3.11, updated: Oct 2016
3.3.11     1.09 MB Oct 2016
platform icon I-O | 22 Driver
version 2.9.77, updated: Feb 2017
2.9.77     1.51 MB Feb 2017
platform icon I-O | 22 Driver
version 2.9.77, updated: Feb 2017
2.9.77     2.53 MB Feb 2017

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


I-O | 22 FAQs

The driver doesn't install on Windows 8 / Windows 10. How can I get it to work?

Currently by default Microsoft has an option that can prevent some of Lexicon's drivers from installing properly. This option can be turned off through Windows Advanced Boot options menu. Lexicon recommends to follow THIS guide using the procedure in option two. For any reason you still have issues feel free to let us know at: Support@Lexiconpro.com
